Windows / Rate sheet

Opens (or closes) the rate sheet window.

The dimensions of this window can be changed. It displays statistics on the rate of the contest.

3 tabs are available : LOG, OBJECTIVES, CONTINENTS.

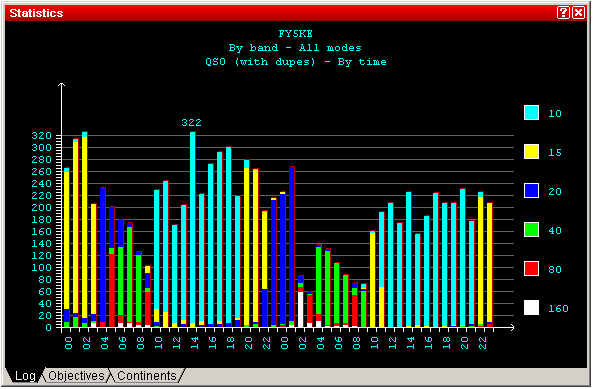

Rate sheet window - Log

This resizable window displays the number of completed QSO,hour by hour, during the contest.

Contextual menu

Data
• You can display QSO with or without dupes, or only dupes
• You can display QSO with or without QTC or only QSO with QTC (WAE Contest)
• You can display the mults
• You can display points, km (VHF)
• You can display countries, zones or states (ARRL DX)
Band
• All (total) : Single color display of all the QSO on all the bands
• All (detailed) : Displays all the QSO with a color by band
• Current : Displays only QSO of the current band
• According to QSO : Displays only QSO for which the band is the current QSO's one
• You can choose yourself bands to be displayed
Mode
• All (total) : Single color display of all the QSO on all the modes
• All (detailed) : Displays all the QSO with a color by mode
• Current : Displays only QSO of the current mode
• According to QSO : Displays only QSO for which the mode is the current QSO's one
• You can choose yourself mode to be displayed
Display
• By time : Displays the QSO hour by hour
• Overall : Displays the progressive number of QSO hour by hour
• You can copy this window as an image or text in the Windows clipboard.
• If you have a wheel mouse, you can set a bigger or smaller font in clicking in it, and use the Ctrl key while rolling the wheel.
• The color of title bar can be modified to ease its recognition in a cluttered layout.

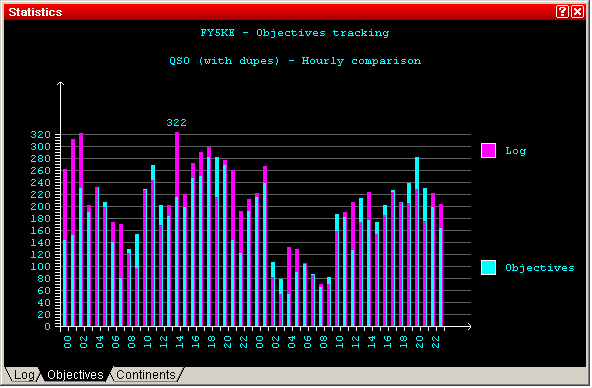

Rate sheet window - Objectives

A comparative statistic is available, but you need an objective file (.OBF) to do it (created with the past year log for example).

Contextual menu

Data
• You can display QSO with or without dupes, or only dupes
• You can display QSO with or without QTC or only QSO with QTC (WAE Contest)
• You can display the mults
• You can display points, km (VHF)
• You can display countries, zones or states (ARRL DX)
Display
• By time : Displays the QSO hour by hour
• Overall : Displays the progressive number of QSO hour by hour
• Load an Objetive file
• Export an Objetive file
• You can copy this window as an image or text in the Windows clipboard.
• If you have a wheel mouse, you can set a bigger or smaller font in clicking in it, and use the Ctrl key while rolling the wheel.
• The color of title bar can be modified to ease its recognition in a cluttered layout.

Rate sheet window - Continent

Contextual menu

Band
• All (total) : Single color display of all the QSO on all the bands
• All (detailed) : Displays all the QSO with a color by band
• Current : Displays only QSO of the current band
• According to QSO : Displays only QSO for which the band is the current QSO's one
• You can choose yourself bands to be displayed
Mode
• All (total) : Single color display of all the QSO on all the modes
• All (detailed) : Displays all the QSO with a color by mode
• Current : Displays only QSO of the current mode
• According to QSO : Displays only QSO for which the mode is the current QSO's one
• You can choose yourself mode to be displayed
• You can copy this window as an image or text in the Windows clipboard.
• If you have a wheel mouse, you can set a bigger or smaller font in clicking in it, and use the Ctrl key while rolling the wheel.
• The color of title bar can be modified to ease its recognition in a cluttered layout.
